- IP65-beskyttelsesklasse
- Forsyningsspænding 24 V
- Udgang 0-10 V DC
- Type af kanal

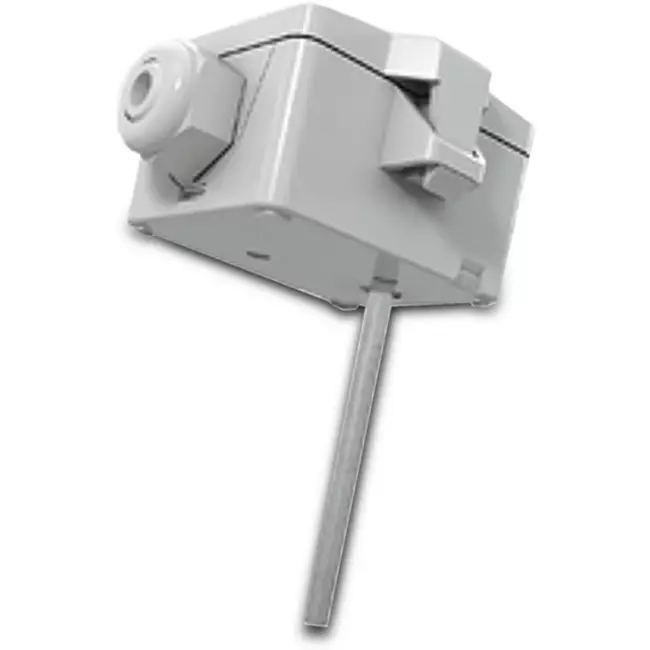

CO₂-sensor til ventilationsaggregater med 0-10V output - SEN CO2 02
SEN CO2 02 er en præcis CO₂-sensor til ventilationsaggregater, designet til behovsstyret volumenstrømsregulering. Denne sensor anvender en stabil dobbelt infrarød stråle teknologi (dual beam), hvilket sikrer lang levetid og pålidelige målinger. CO₂-sensoren er egnet til kanalmontering og har et robust kabinet med beskyttelsesklasse IP65. Måleværdien vises via et 0–10 V DC udgangssignal, som registrerer CO₂-indholdet mellem 0 og 2000 ppm.
| Brand: | Ruck ventilatoren GmbH |
| Kategori | Sensorer |
| GTIN | 4061199041294 |
| Producentens varenummer | SEN CO2 02 |
| Artikel nummer | 65168750 |
Specifikationer
| Kategorikode | 121 |
| Scope of application | Duct |
| With mounting material | Ja |
| Suitable for wall mounting | Nej |
| Suitable for ceiling mounting | Nej |
| Suitable for duct mounting | Ja |
| Suitable for tube mounting | Ja |
| Suitable for air | Ja |
| Suitable for liquids | Nej |
| Suitable for gases | Ja |
| With housing | Ja |
| Cover attachment | Screwed |
| Sensor element inside housing | Ja |
| Sensor element outside housing | Nej |
| Fixed cable to sensor | Nej |
| Technology | NDIR |
| Active temperature measurement | Nej |
| Passive temperature measurement | Nej |
| Average temperature measuring | Nej |
| Number of measuring points | 1 |
| Measurement of CO2 | Ja |
| Measurement of VOC | Nej |
| Measurement of relative air humidity | Nej |
| Measurement of absolute air humidity | Nej |
| Enthalpy measurement | Nej |
| Measurement of dewpoint | Nej |
| Particulate matter measurement (PM) | Nej |
| Number of measuring ranges | 1 |
| Offset setting possible | Ja |
| Trend representation | Nej |
| Error registration possible | Nej |
| Sensor type | Other |
| Tolerance | 3 % |
| Potentiometer with adjustment knob | Nej |
| Supporting protocol for BACnet | Nej |
| Supporting protocol for Modbus | Nej |
| Supporting protocol for MP (multi point) | Nej |
| Supporting protocol for KNX | Nej |
| LoRa technology | Nej |
| NFC (Near Field Communication) | Nej |
| Bluetooth | Nej |
| Wi-Fi-compatible | Nej |
| Standby push button | Nej |
| Wireless | Nej |
| With display | Nej |
| Type of power supply | Power cord |
| Type of electric connection | Screw connection |
| With reverse polarity protection | Ja |
| Number of output signals | 1 |
| Number of output ranges 0 V ... 10 V | 1 |
| Max. ambient humidity (non-condensing) | 95 % |
| Explosion-proof | Nej |
| Degree of protection (IP) | IP65 |
| Housing height | 100 mm |
| Housing width | 200 mm |
| Housing depth | 300 mm |
| Housing colour | White |
| Compatible with Apple HomeKit | Nej |
| Compatible with Google Assistant | Nej |
| Compatible with Amazon Alexa | Nej |
| IFTTT support available | Nej |
