Gode pointer

RF/kablet, hvid
Mærke: Duco
CO2 rumsensor
Uden kontrol

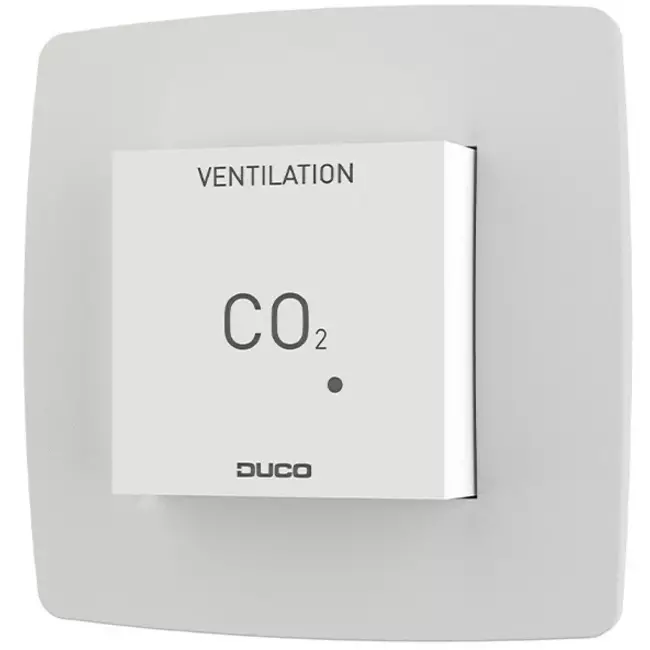

Duco CO2-rumsensor uden styring RF / Kablet – Hvid

CO2-rumsensoren uden styring fra Duco måler både CO2-indholdet og temperaturen i opholdsrummene og styrer ventilationssystemet på den baggrund af disses målinger. Denne sensor har ikke kontrolpanel, så styring af ventilationsenheden altid sker automatisk.

Denne CO2-sensor er velegnet til DucoBox Silent, Energy og Focus. CO2-rumsensoren uden kontrolpanel forsynes med 230V eller 24V og kommunikerer trådløst ('RF') eller med kabel ('Wired'). Denne kontrolkontakt kommer i farven sort, men fås også i en hvid udgave.

Brand:	Duco
Kategori	Duco betjening
GTIN	5425037155779
Producentens varenummer	0000-4637
Artikel nummer	19140006

Specifikationer

Kategorikode	113
Scope of application	Room
With mounting material	Nej
Suitable for wall mounting	Ja
Suitable for ceiling mounting	Ja
Suitable for duct mounting	Nej
Suitable for tube mounting	Nej
Suitable for air	Ja
Suitable for liquids	Nej
Suitable for gases	Nej
With housing	Ja
Cover attachment	Snapped on
Sensor element inside housing	Ja
Sensor element outside housing	Nej
Fixed cable to sensor	Ja
Cable length	0.1 m
Material element	Other
Technology	NDIR
Active temperature measurement	Ja
Passive temperature measurement	Nej
Average temperature measuring	Ja
Number of measuring points	1
Measurement of CO2	Ja
Measurement of VOC	Nej
Measurement of relative air humidity	Nej
Measurement of absolute air humidity	Nej
Enthalpy measurement	Nej
Measurement of dewpoint	Nej
Particulate matter measurement (PM)	Nej
CO2 measuring range (min)	300 ppm
CO2 measuring range (max)	2000 ppm
Temperature measuring range (min)	-40 °C
Temperature measuring range (max)	125 °C
Offset setting possible	Nej
Trend representation	Nej
Error registration possible	Nej
Sensor type	Other
Potentiometer with adjustment knob	Nej
Supporting protocol for BACnet	Nej
Supporting protocol for Modbus	Ja
Supporting protocol for MP (multi point)	Nej
Supporting protocol for KNX	Nej
LoRa technology	Nej
NFC (Near Field Communication)	Nej
Bluetooth	Nej
Wi-Fi-compatible	Nej
Standby push button	Nej
Wireless	Ja
With display	Nej
Type of power supply	Power cord
Type of electric connection	Push-in clamp connection
With reverse polarity protection	Ja
Max. ambient humidity (non-condensing)	100 %
Explosion-proof	Nej
Degree of protection (IP)	IP31
Housing height	69 mm
Housing width	69 mm
Housing depth	60 mm
Housing colour	White
Compatible with Apple HomeKit	Nej
Compatible with Google Assistant	Nej
Compatible with Amazon Alexa	Nej
IFTTT support available	Nej
Suitable for	Ducobox Focus, Ducobox Reno, Ducobox Silent, Ducobox Silent Connect
