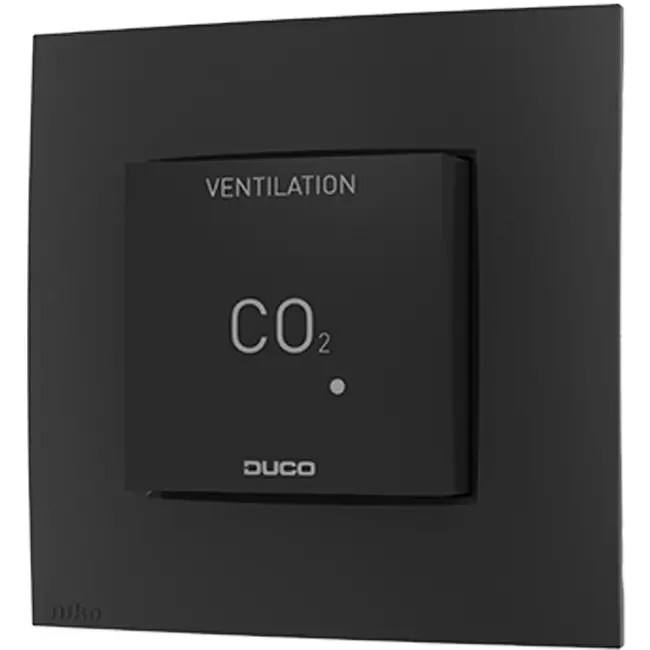

CO2-rumsensoren uden styring fra Duco måler både CO2-indholdet og temperaturen i opholdsrummene og styrer ventilationssystemet på den baggrund af disses målinger. Denne sensor har ikke kontrolpanel, hvilket betyder, at styring af ventilationsenheden altid foregår automatisk.
Denne CO2-sensor er velegnet til DucoBox Silent, Energy og Focus. CO2-rumsensoren uden kontrolpanel forsynes med 230V eller 24V og kommunikerer trådløst ('RF') eller med kabel ('Wired'). Denne betjeningskontakt kommer i farven hvid, men fås også i en sort variant.
| Brand: | Duco |
| Kategori | Duco betjening |
| GTIN | 05404040701463 |
| Producentens varenummer | 0000-7113 |
| Artikel nummer | 19140132 |
| Kategorikode | 113 |
| With mounting material | Nej |
| Suitable for wall mounting | Ja |
| Suitable for ceiling mounting | Ja |
| Suitable for duct mounting | Nej |
| Suitable for tube mounting | Nej |
| Suitable for air | Ja |
| Suitable for liquids | Nej |
| Suitable for gases | Nej |
| With housing | Ja |
| Cover attachment | Snapped on |
| Sensor element inside housing | Ja |
| Sensor element outside housing | Nej |
| Fixed cable to sensor | Ja |
| Cable length | 0.1 m |
| Material element | Other |
| Technology | NDIR |
| Active temperature measurement | Ja |
| Passive temperature measurement | Nej |
| Average temperature measuring | Ja |
| Number of measuring points | 1 |
| Measurement of CO2 | Ja |
| Measurement of VOC | Nej |
| Measurement of relative air humidity | Nej |
| Measurement of absolute air humidity | Nej |
| Enthalpy measurement | Nej |
| Measurement of dewpoint | Nej |
| Particulate matter measurement (PM) | Nej |
| CO2 measuring range (min) | 300 ppm |
| CO2 measuring range (max) | 2000 ppm |
| Temperature measuring range (min) | -40 °C |
| Temperature measuring range (max) | 125 °C |
| Offset setting possible | Nej |
| Trend representation | Nej |
| Error registration possible | Nej |
| Sensor type | Other |
| Potentiometer with adjustment knob | Nej |
| Supporting protocol for BACnet | Nej |
| Supporting protocol for Modbus | Ja |
| Supporting protocol for MP (multi point) | Nej |
| Supporting protocol for KNX | Nej |
| LoRa technology | Nej |
| NFC (Near Field Communication) | Nej |
| Bluetooth | Nej |
| Wi-Fi-compatible | Nej |
| Standby push button | Nej |
| Wireless | Ja |
| With display | Nej |
| Type of power supply | Power cord |
| Type of electric connection | Push-in clamp connection |
| With reverse polarity protection | Ja |
| Max. ambient humidity (non-condensing) | 100 % |
| Explosion-proof | Nej |
| Degree of protection (IP) | IP31 |
| Housing height | 69 mm |
| Housing width | 69 mm |
| Housing depth | 60 mm |
| Housing colour | Black |
| Compatible with Apple HomeKit | Nej |
| Compatible with Google Assistant | Nej |
| Compatible with Amazon Alexa | Nej |
| IFTTT support available | Nej |
| Suitable for | Ducobox Focus, Ducobox Reno, Ducobox Silent, Ducobox Silent Connect |
| Scope of application | Room |
