MVS 15R er en virkelig støjsvag fan! Denne ultimative præstation er resultatet af en række ændringer. En af de mest markante ændringer er den nye "GreenTech RadiCal" EC jævnstrømsmotor i en EPP volut! Denne kombination sikrer støjsvag drift. Lufttætheden og den lydisolerende effekt er også blevet væsentligt forbedret af EPP-volutten. MVS-15R er den perfekte balance mellem lydniveau, energiforbrug og komfort! Du kan tilslutte op til 20 trådløse moduler til denne ventilatorboks!
Nøglefunktioner for ventilator
| Brand: | Orcon |
| Kategori | Orcon MVS-15 |
| GTIN | 8718403863161 |
| Producentens varenummer | 21130005 |
| Artikel nummer | 19130016 |
| Pakke-type | Ventilationsboks |
| Kategorikode | 10 |
| Housing material | Plastic |
| Max. air volume at 50 Pa | 580 m³/h |
| Max. air volume at 100 Pa | 550 m³/h |
| Max. air volume at 150 Pa | 510 m³/h |
| Max. air volume at 200 Pa | 490 m³/h |
| Max. air volume at 250 Pa | 470 m³/h |
| Max. air volume at 300 Pa | 420 m³/h |
| Power consumption at max. air volume at 100 Pa | 80 W |
| Frequency supply voltage (min) | 50 Hz |
| Frequency supply voltage (max) | 60 Hz |
| Supply voltage (min) | 200 V |
| Supply voltage (max) | 240 V |
| Max. nominal current | 0.8 A |
| Sound power level | 46 dB(A) |
| Type of motor | Electronically commutated (EC) |
| Electrical connection | Connecting cable with plug with protective contact |
| Energy efficiency class | E |
| Control signal | PWM (pulse-width-modulated) |
| Type of speed control | 3 positions |
| Type of switch | Other |
| With wireless remote control | Nej |
| Suitable for wireless remote control | Ja |
| With wired control unit | Nej |
| Suitable for wired control unit | Nej |
| Suitable for requirement-controlled ventilation | Nej |
| With internal humidity (RH) sensor | Nej |
| With external humidity (RH) sensor | Nej |
| Suitable for (extra) humidity (RH) sensor | Ja |
| With internal carbon dioxide (CO2) sensor | Nej |
| With external carbon dioxide (CO2) sensor | Nej |
| Suitable for (extra) carbon dioxide (CO2) sensor | Ja |
| Detects volatile organic compounds | Nej |
| With pressure sensor | Nej |
| Suitable for (extra) pressure sensor | Nej |
| With constant volume flow control | Nej |
| With zone controller | Nej |
| Suitable for zone controller | Nej |
| Operation by app | Nej |
| With movement sensor | Nej |
| Suitable for movement sensor | Nej |
| Sensor controlled air flow | Nej |

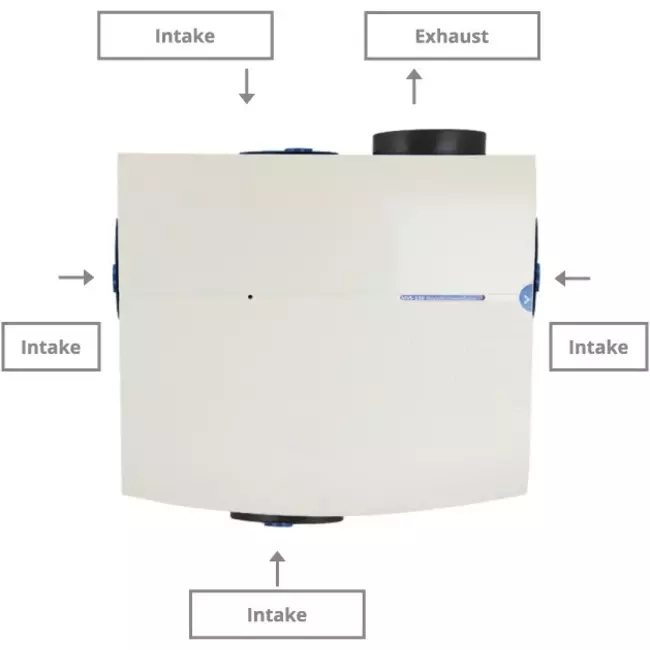

| Number of suction connections | 5 |
| Max. number of wet zones | 5 |
| Forbindelse | Insteekeind |
| Nominal duct diameter suction side | 125 mm |
| Nominal duct diameter exhaust air | 125 mm |
| Nominal duct diameter sanitary connections | 125 mm |
| Nominal duct diameter kitchen connections | 125 mm |
| Suitable for wall mounting | Ja |
| Suitable for ceiling mounting | Ja |
| Suitable for mounting in suspended ceiling | Ja |
| Suitable for mounting in an attic | Ja |
| Suitable for floor mounting | Ja |
| Suitable for suspended mounting | Ja |
| Horizontal mounting | Ja |
| Vertical mounting | Ja |
| Rear connection | Ja |
| Dybde | 303 mm |
| Højde | 389 mm |
| Bredde | 449 mm |
| Weight | 4.64 kg |
| Type stik | Tilslutningskabel med sikkerhedsstik |
| Energimærke | E |
